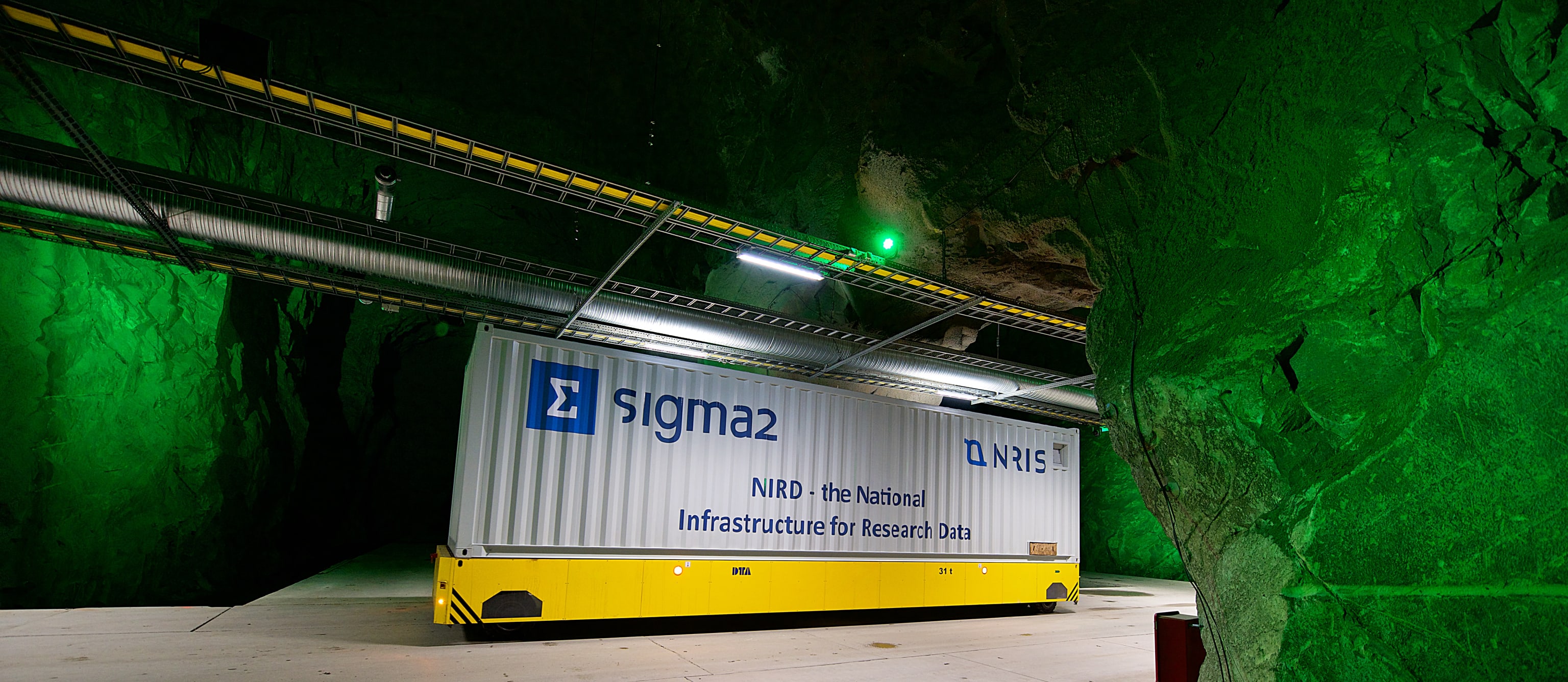

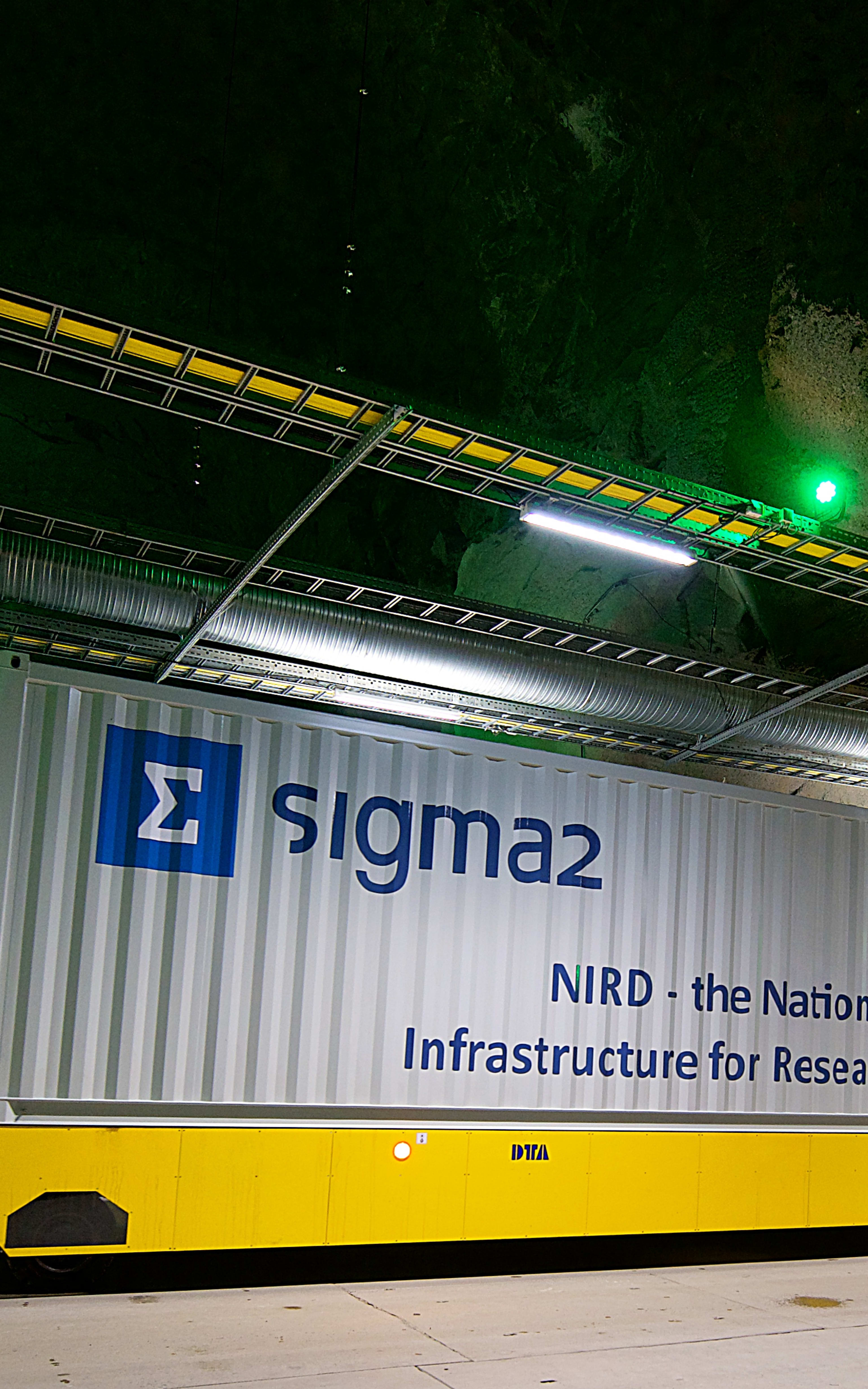

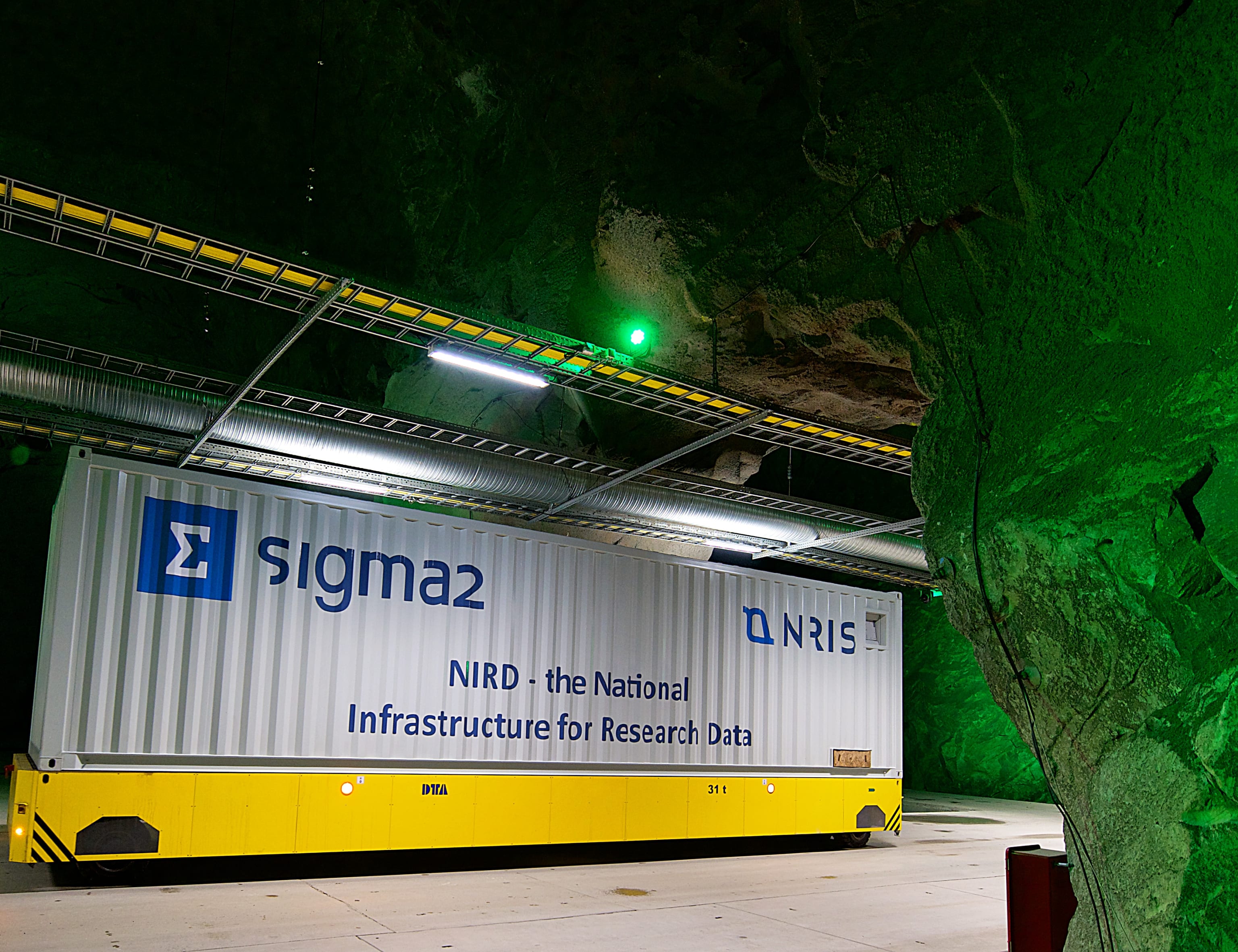

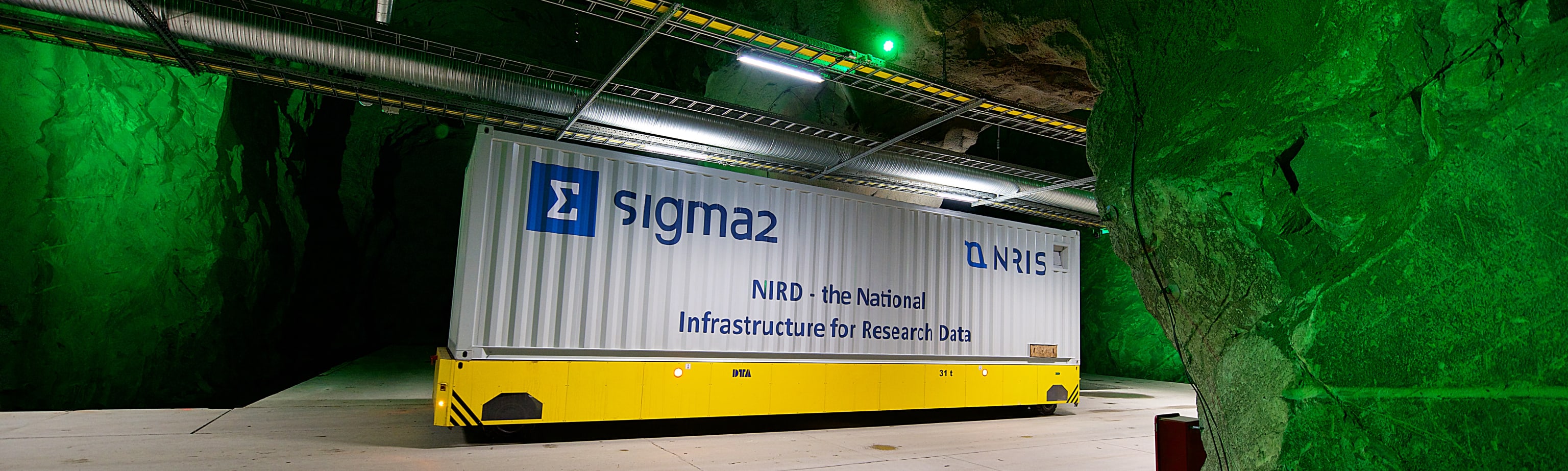

Our mine allows for placement of containers on both sides

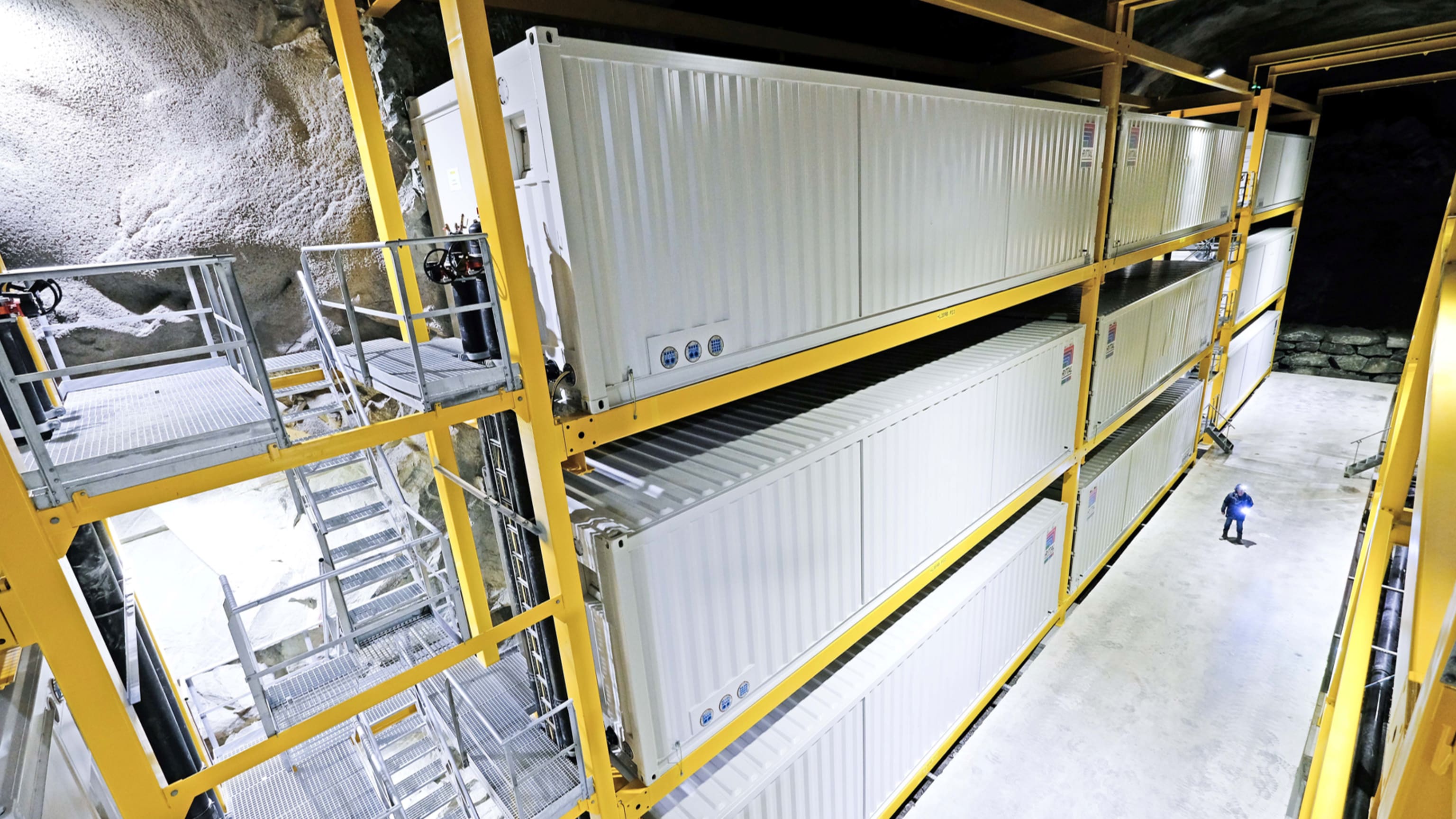

The width of the streets allows placement of containers on both sides with a transportation route in the middle. The height of the streets is 17 meters, and the containers are stacked in 3 heights.
Using container-based solutions provides rational production remotely and quick installation in the facility. Equipment can also be easily replaced or moved. The solution includes racks for the containers and access via stairs where applicable.
There are access roads to designated customer areas allowing secure transportation and handling of IT equipment. The facility has specially designed electrical vehicles that handle up to 30 tons of fully loaded IT containers. Container leasing is offered in both Capex and Opex models.
[Unique Flexibility]
Rittal Standard Modules
Rittal has developed specially designed standard modules as a housing solution tailor-made for Lefdal Mine Data Centers. The modules consist of server racks, raised floor, LCPs, PDR racks, and network racks. Modules fit inside either IT containers, dedicated data halls, or security rooms.
The modules are available in different sizes – 6 to 12 server racks – with densities from 5 to 30 kW/rack. They can be adapted in N+1 or N+N environments. Standardization ensures high quality, low cost, and short delivery time. Time to market is 12-16 weeks from the purchase order.
• Optimized System
• Scalable
• Plug and Play
• Modular
• Short time to market
• Pre-Certified Solution
Standardized Housing Solutions
• Steel container – water-tight steel frame
• Outdoor installation tolerant
• 2 double-paneled security doors
• Dimensions 12,192×3,000×3,000 mm
• 300 mm raised floor – 600 x 600 mm
• Energy distribution and door system
• 19” rack systems, TS-IT
• Power distribution PDU
• Server and network racks 600x2000x1200 mm – Installation height 42 U
• LCP Inline flush integrated in the Rack-Row – 300x2000x1200 mm
